Setup Geocodes Services Containers:

This is step 2 of 4 major steps:

1. Install base containers on a server
2. Setup services containers
3. Initial setup of services and loading of data
4. Setup Geocodes UI using datastores defined in Initial Setup

Services Stack

The services stack includes the graph, storage (s3) and sparql gui containers. JSON-LD files are 'summoned' by gleaner to the s3 storage, and nabu convert jsonld to rdf quads and pushes the results to the graph. After uploading, a step to produce a materialized view is required to improve performance The summarize step is undocoumented at present.

create a new env file

• cd deployment
• Edit files containing env variables
• copy portainer.services.env to new file.cp portainer.env {myhost}.services.env
• copy portainer.geocodes.env to new file.cp portainer.geocodes.env {myhost}.geocodes.env
• (option) use single file copy portainer.env to new file.cp portainer.env {myhost}.env
• edit {myhost}.{geocodes|services}.env
  • change

env

HOST=geocodes-dev.mydomain.org
PRODUCTION=geocodes.mydomain.org
GC_CLIENT_DOMAIN=geoccodes.geocodes-dev.mydomain.org
S3ADDRESS=oss.geocodes-dev.mydomain.org

Setup and start services using portainer ui

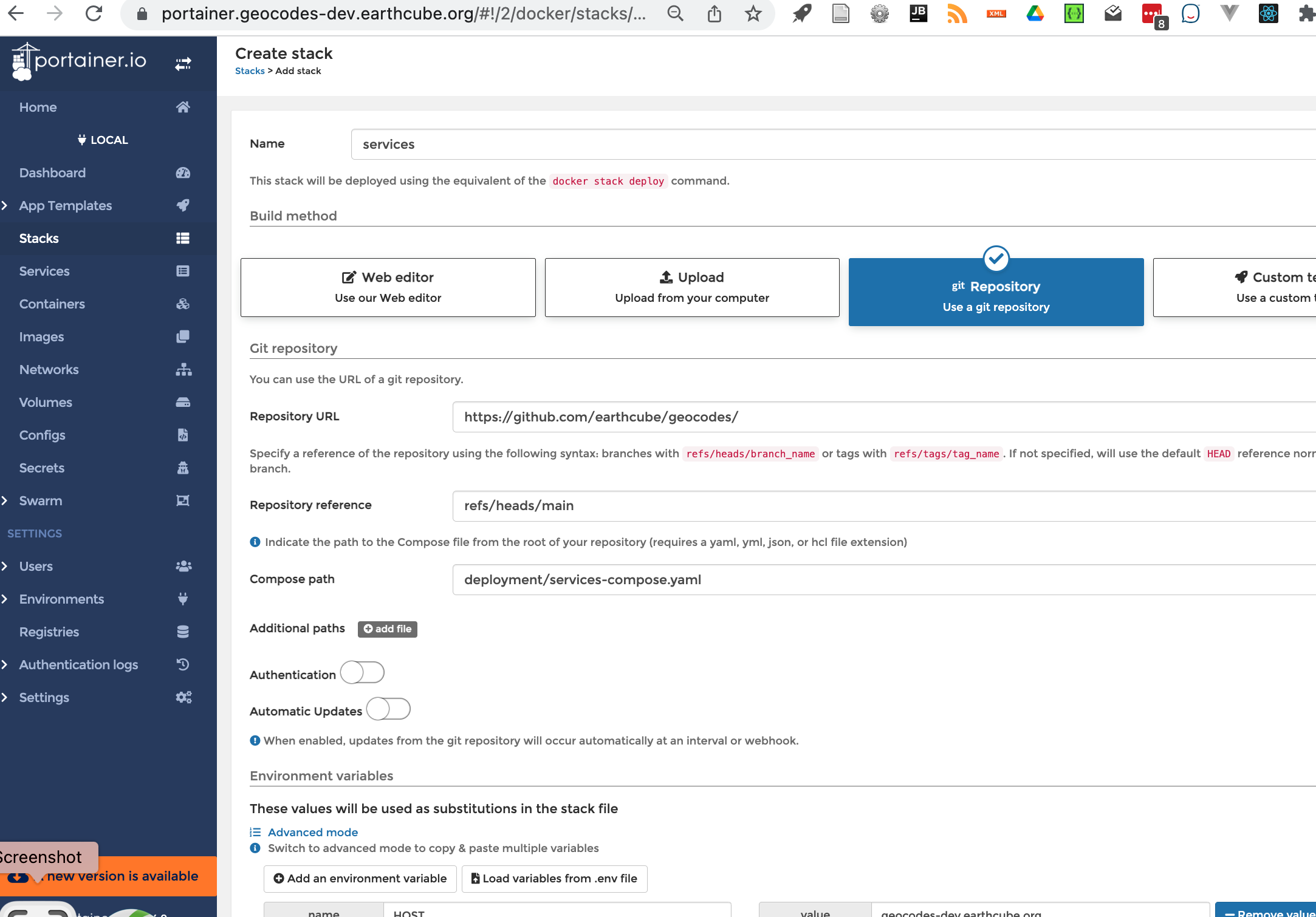

Create Services Stack

• log into portainer
  • if this is a first login, it will ask you for a password.
  • Select stack tab
  • click add stack button

    Name: services
    Build method: git repository
    Repository URL: https://github.com/earthcube/geocodes
    Reference: refs/heads/main
    Compose path: deployment/services-compose.yaml

  • Environment variables: click 'load variables from .env file'
    • load {myhost}.services.env
  • Actions:
    • Click: Deploy This Stack

Services Stack

Go to step 3.

1. Install base containers on a server
2. Setup services containers
3. Initial setup of services and loading of data
4. Setup Geocodes UI using datastores defined in Initial Setup

Testing Services Stack
