Setup Geocodes Services Containers for Test Data load GCTEST:

This is step 5 of 5 major steps:

  1. Install base containers on a server
  2. Setup services containers
  3. Setup Gleaner containers
  4. Initial setup of services and loading of data
  5. Setup Geocodes UI using datastores defined in Initial Setup

Step Overview: Setup and start GeoCodes Client using portainer ui:

  • modify the configuration file
  • create stack in portainer
  • test
  • instructions for Updating a GEOCODES CLIENT Configuration if things do not work
    • or delete stack and reload

Step Details:

Modify the Facet Search Configuration

  • edit in deployment/facets/config.yaml
  • this file is mounted on the container as a docker config file
    • run the run_add_configs.sh

Portions of deployment/facets/config.yaml that might be changed.

section of deployment/facets/config.yaml
API_URL: https://geocodes.{your host}/ec/api/
SPARQL_NB: https:/geocodes.{your host}/notebook/mkQ?q=${q}
SPARQL_YASGUI: https://geocodes.{your host}/sparqlgui?
#API_URL: "${window_location_origin}/ec/api"
#TRIPLESTORE_URL: https://graph.geocodes-1.earthcube.org/blazegraph/namespace/gctest/sparql
TRIPLESTORE_URL: https://graph.{your host}/blazegraph/namespace/gctest/sparql
BLAZEGRAPH_TIMEOUT: 20
## ECRR need to use fuseki source, for now.
ECRR_TRIPLESTORE_URL: http://132.249.238.169:8080/fuseki/ecrr/query
# ECRR_TRIPLESTORE_URL:   http://{your host}/blazegraph/namespace/ecrr/sparql
ECRR_GRAPH: http://earthcube.org/gleaner-summoned
THROUGHPUTDB_URL: https://throughputdb.com/api/ccdrs/annotations
SPARQL_QUERY: queries/sparql_query.txt
SPARQL_HASTOOLS: queries/sparql_hastools.txt
SPARQL_TOOLS_WEBSERVICE: queries/sparql_gettools_webservice.txt
SPARQL_TOOLS_DOWNLOAD: queries/sparql_gettools_download.txt
# JSONLD_PROXY needs qoutes... since it has a $
JSONLD_PROXY: "https://geocodes.{your host}/ec/api/${o}"
SPARQL_YASGUI: https://sparqlui.{your host}/?

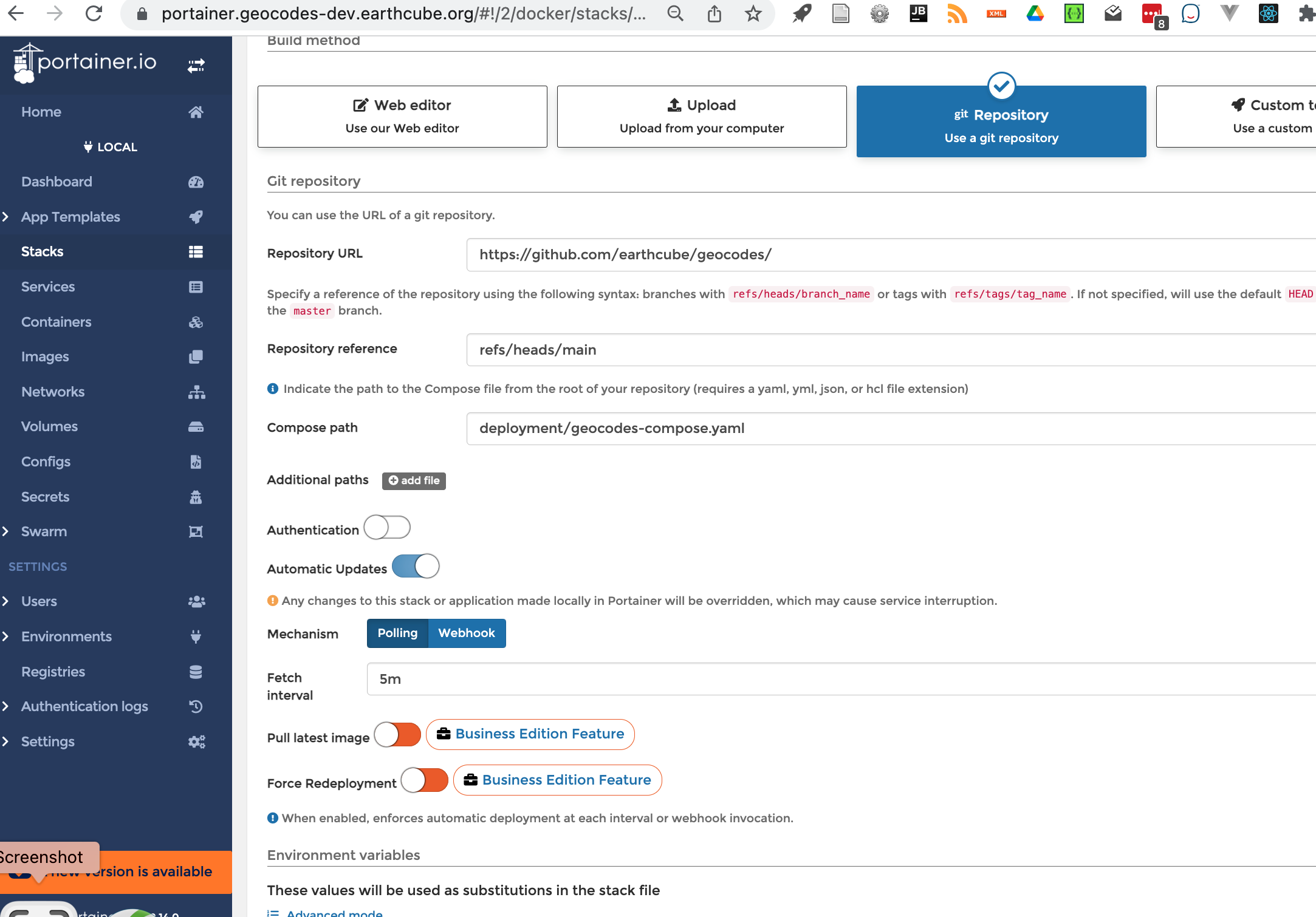

Create Geocodes Stack

  • log into portainer
    • if this is a first login, it will ask you for a password.
    • click add stack button
      Name: geocodes
Build method: git repository
Repository URL: https://github.com/earthcube/geocodes
reference: refs/heads/main
Compose path: deployment/geocodes-compose.yaml
    • Environment variables: click 'load variables from .env file'
      • load {myhost}.geocodes.env
    • Actions:
      • Click: Deploy This Stack
Geocodes Stack

Create Geocodes Stack

Test Geocodes Client

Issues

IF things are not working in the UI, it is probably the facet search configuration You can take down the geocodes stack, and delete the config/facets_search or you can possibly just stop the gecodes_vue_ui service, and edit the facets_search config as noted here: See Managing Geocodes UI Containers

  1. Got to https://geocodes.{your host}/
  2. Got to configuration: https://geocodes.{your host}/#/config
  3. Two sections, one is the facests/config.yaml and the second is the API configuration (sanitized, we hope)

Done

This is the end of the deployment steps.

If the deployment is working, you can now

  • (Setup a Production Configuration)[./production/creatingProductionConfigs.md]
  • (Reconfigure Geocodes UI)[./production/reconfigure_geocodes_ui_containers.md]
